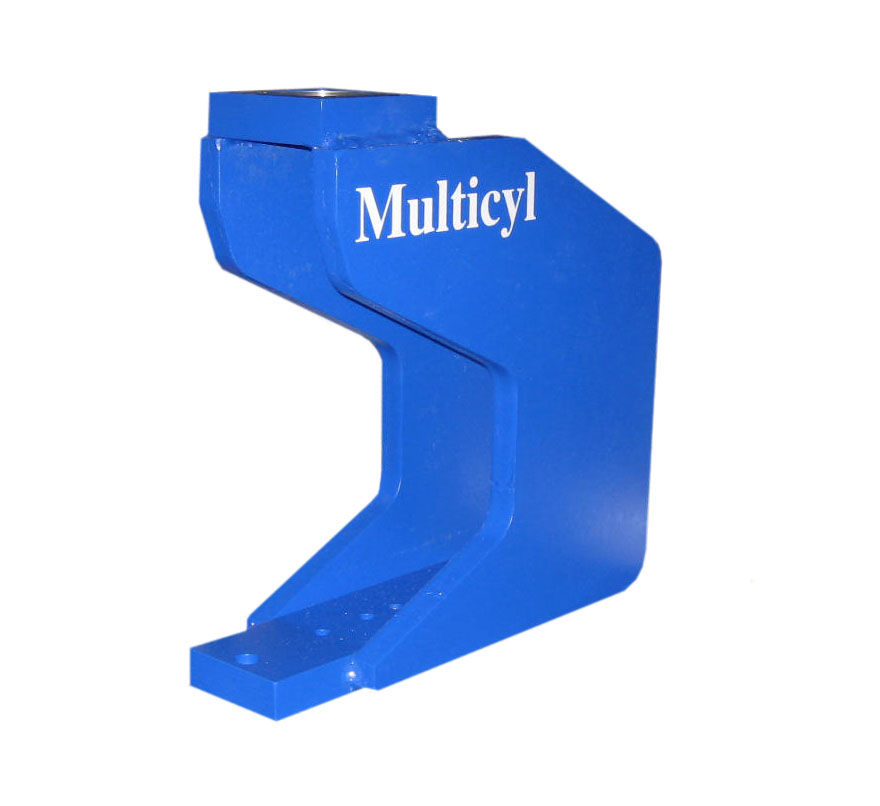

UN-3-H Cylinder Cage C-Frame

Downloads

PDF

DXF

STEP

To open STEP files:

  • Download to your computer first
  • Open with applicable program

Multicyl Pressure Intensifiers

Model Style Tool Height Inside Width Throat Depth Price
UN-3-H C-Frame 10″ 3″ 4″ $840

Minimum operating air pressure: 40 PSI
Maximum air pressure: 120 PSI
Oil Type: Shell Tellus 32 ±
Add $120/Cylinder factory installed
