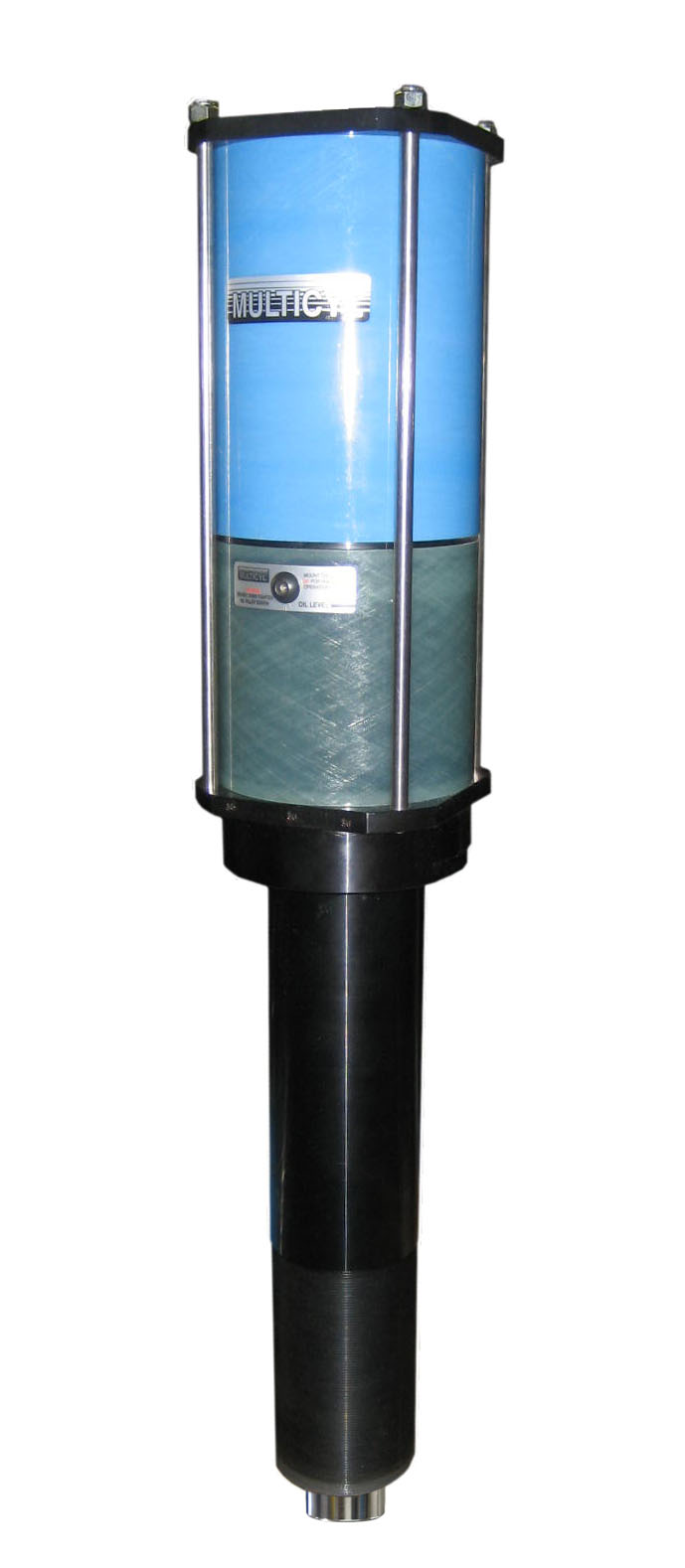

Cylinder XL (Single Acting) XL-15-16-16

Downloads

Multicyl Pressure Intensifiers

Model Maximum Tonnage Overall Stroke Power Stroke Price
XL 15-16-16 7.5@120psi
6.5@100psi
5@80psi
2″ 3/8″ $
Series Price
XL ACP1-X Foot Valve $
XL ACP4X-P 2 Hand Anti-Tie Down $
XL SA-1X Sub Air $
*(8″ throat depth available upon request)

Series Model Style Tool Height Inside Width Throat Depth Price
XL-UNX-4 C-Frame 9″ 4″ 4″ $
XL-UNX-5 C-Frame 9″ 5″ 7″ $
XL-CAX-4 Tube Pierce 10 1/2″ 3″ 1″ $
XL-TNX-1 Tube Notch 6 1/2″ 5 1/2″ Pillar $
Series Model Width: Max Capacity Price
XL 12MCP1215X 12″, 15 tons $
XL 12MCP1825X 18″, 25 tons $
XL MPX-12 5 1/2″ x 5″, 1″ thick $
XL MPX-18 7-1/2″ x 5″, 1-1/2″ thick $

Minimum operating air pressure: 40 PSI
Maximum air pressure: 120 PSI
Oil Type: Shell Tellus 32 ±

$315/Cylinder factory installed seal kit
