Multicyl Linear Rail (MLR) Adjustable Gang Punching System

What is MLR?

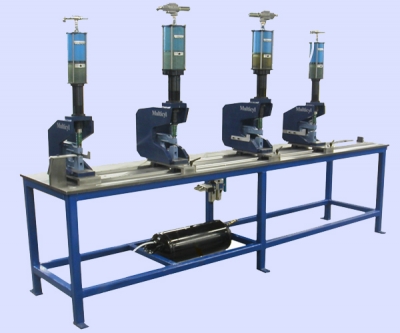

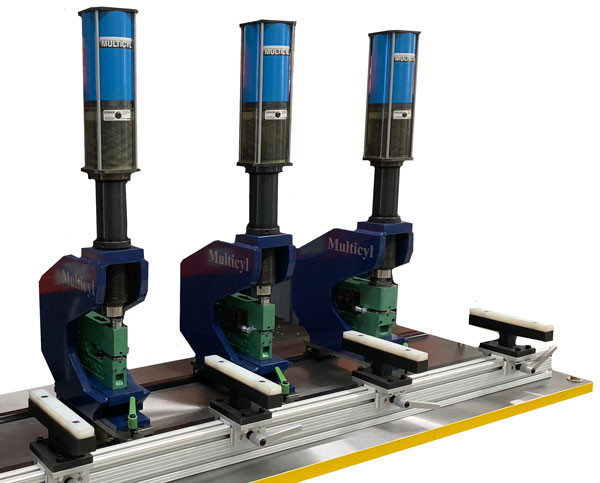

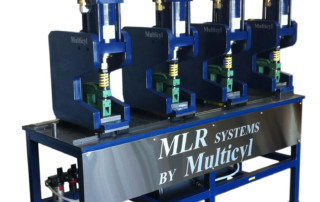

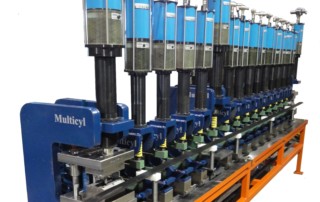

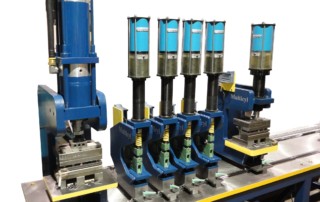

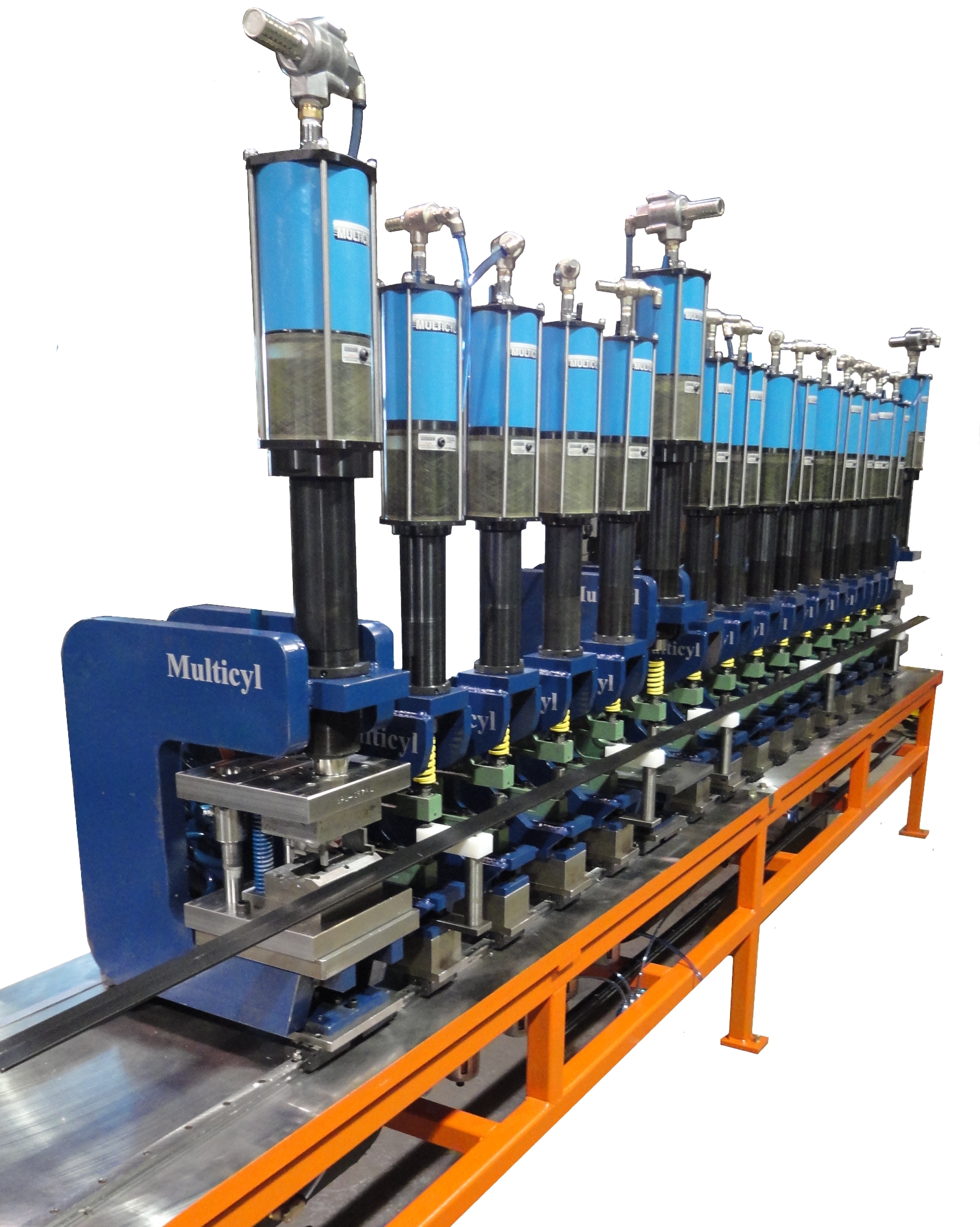

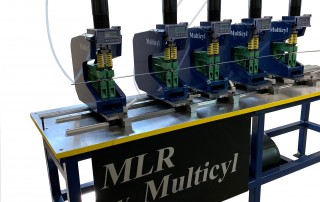

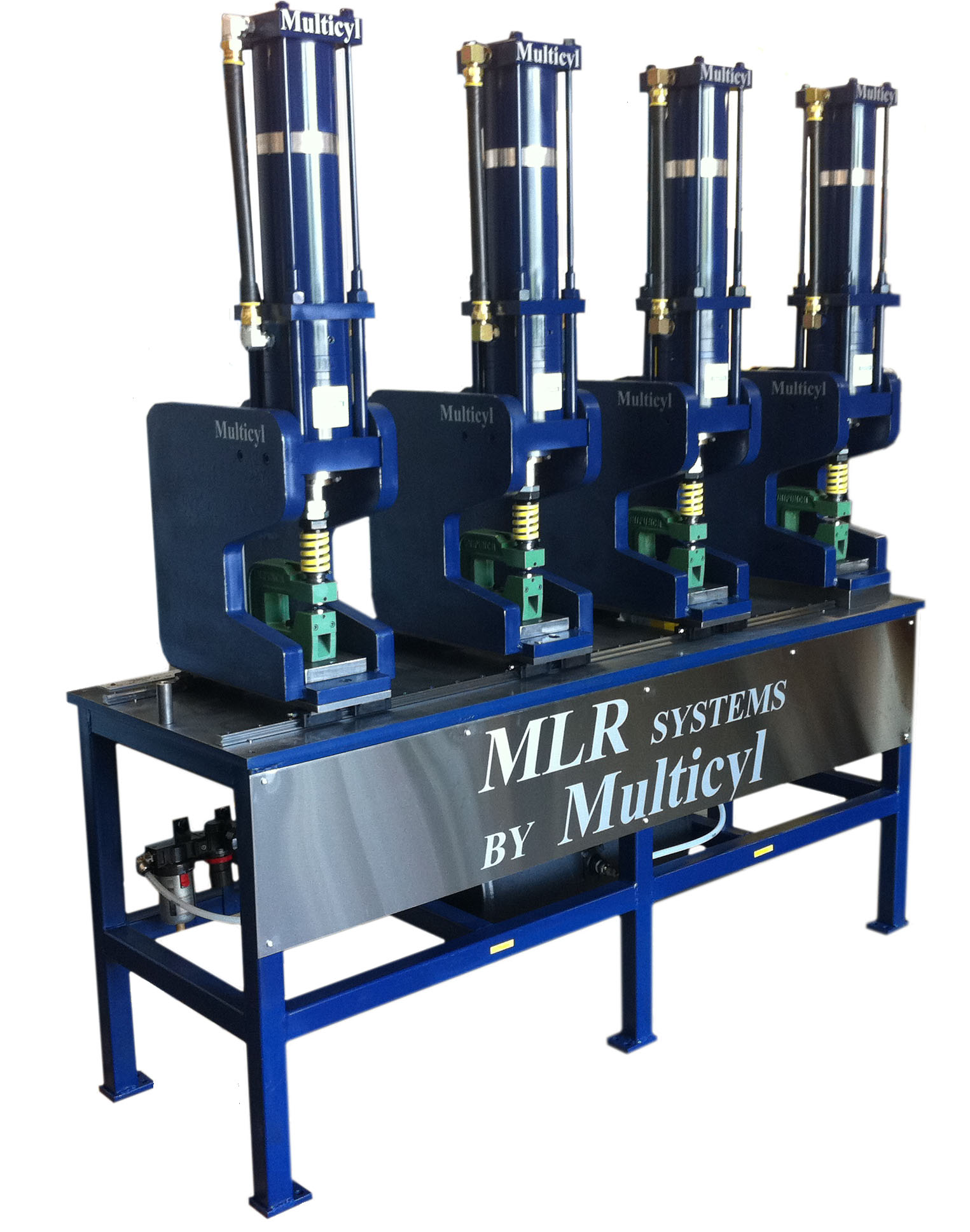

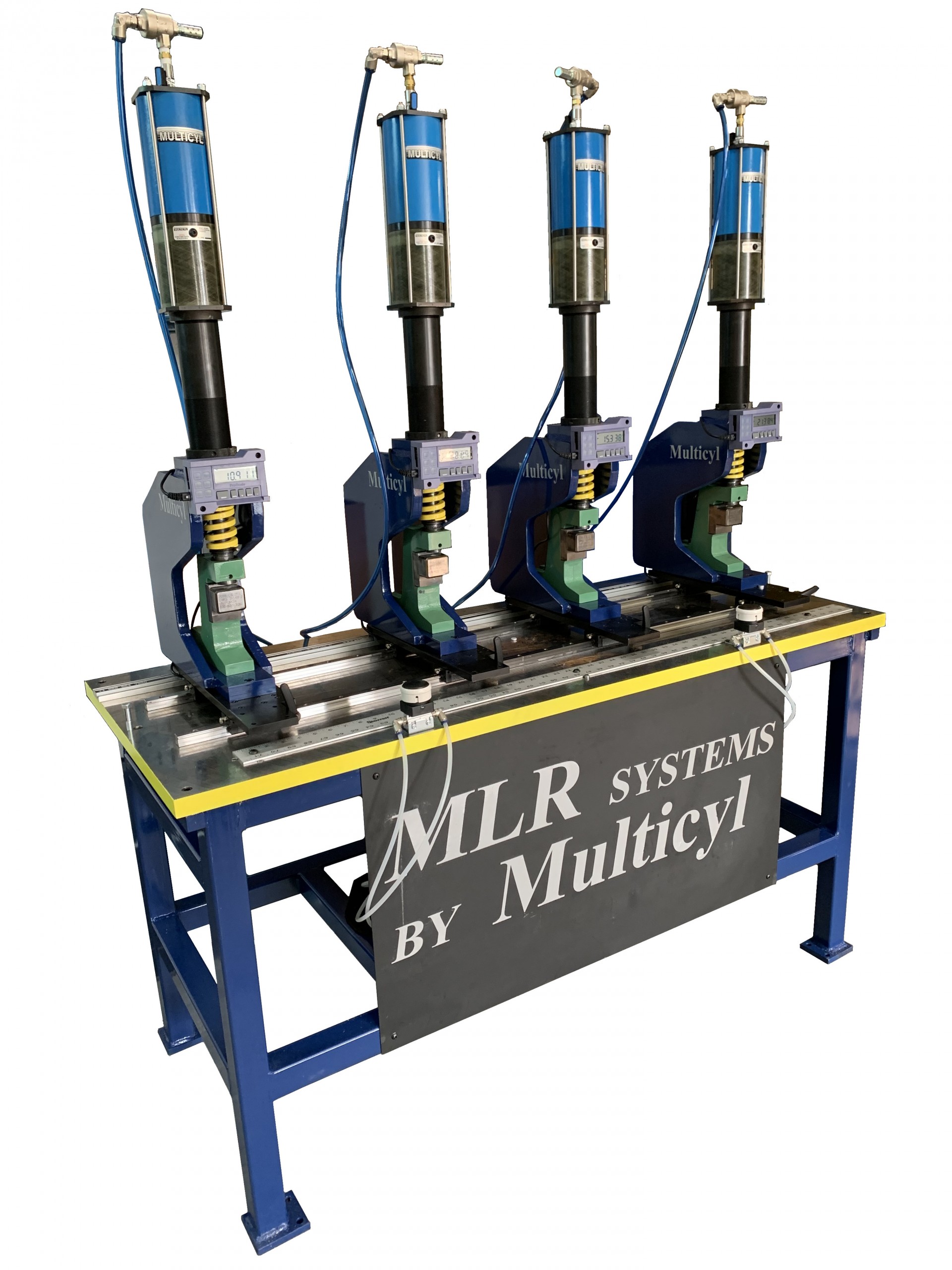

The Multicyl Linear Rail (MLR) is an adjustable gang punching press system which uses our PIB small press packages.  MLR is designed to punch multiple holes at once with the ability to change hole locations quickly and easily to accommodate different parts.  Scroll through the MLR pictures to the left and watch the videos below to see MLR in action.

Why use a Multicyl Linear Rail (MLR) System?
Simple – MLRs are the best solution on the market for variable punching applications in sheet metal, angle iron, aluminum extrusion, or tubing.

Check out these features:

  • Standard table sizes from 2′ to 10′, with larger custom sizes also available
  • The best in hole position versatility – Multicyl stations and backstops relocate in just seconds.
  • Accepts all standard unitized tools or we can supply custom tools
  • Fast cycle times
  • Quick tool changeover
  • Often meets OSHA standards without additional guarding
  • Uses the Multicyl Press-In-A-Box™ technology for easy, simple, and user friendly initial set-up.

We Customize MLR For Your Application

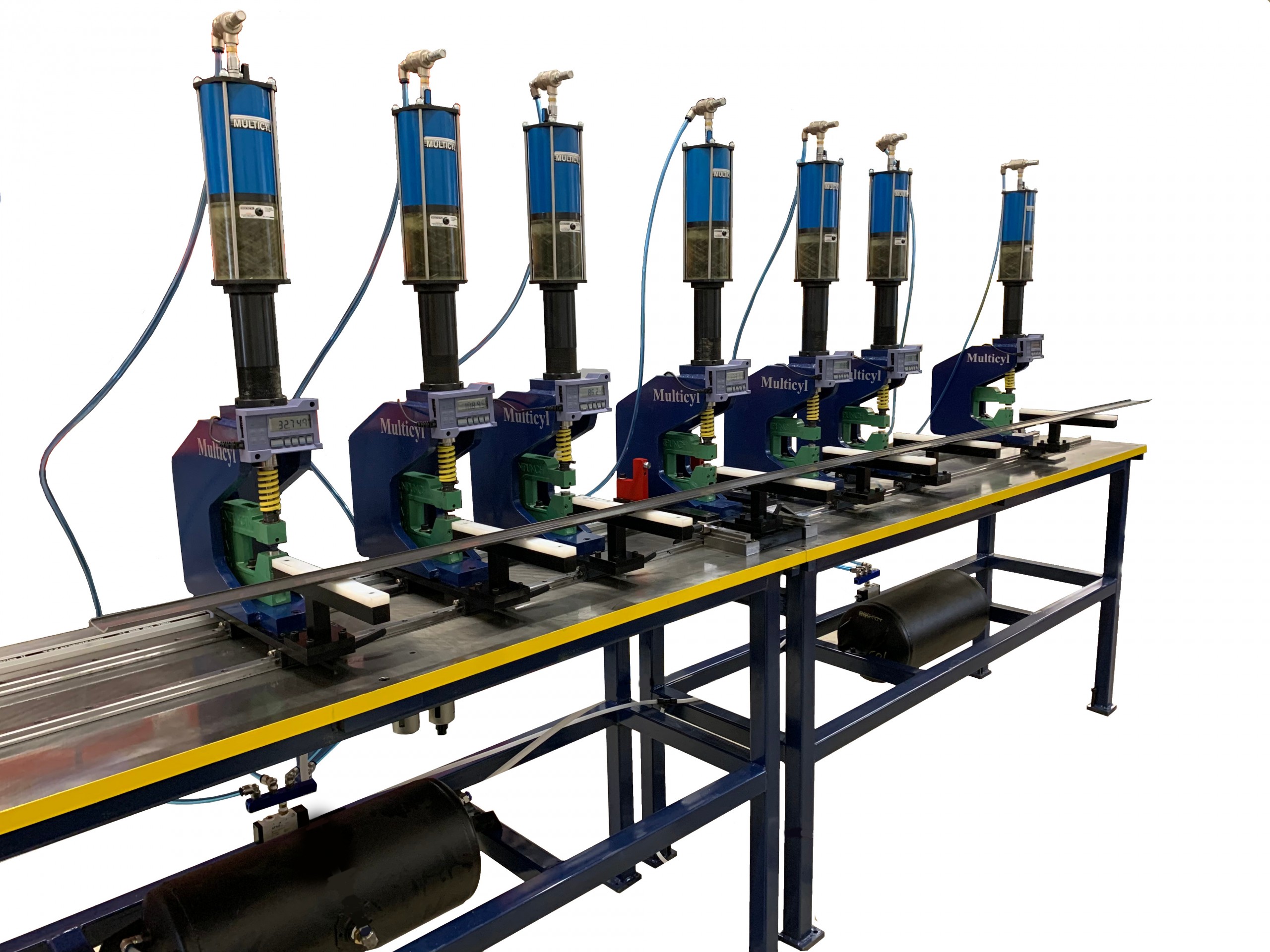

Our design team can add custom features to the MLR System machine to suit your needs. In this application there are two 10 foot long tables dove tailed together to create a 20 foot table length. Additional MLR system features we added for this application include digital readouts, delrin part supports, and adjustable back stops.

Request A Quote

Important information when requesting a quote for applications includes:

Material, material profile, material thickness, and clinch location(s). Additional information such as strength requirements may be important, depending on the individual application. A drawing is always best to quote from.
